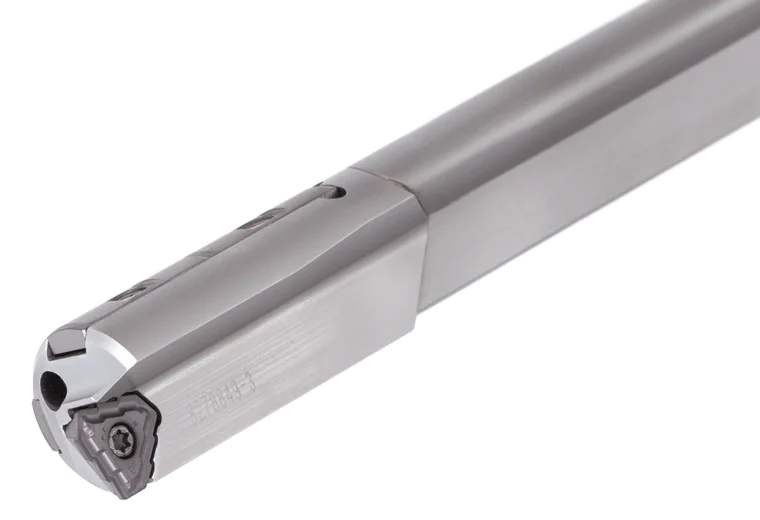

Trygg betalning TRLGCH23.00X1650-24

Beskrivning

Enhet M Applikation | Gundrill | Måttenhet Metrisk MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 32 mm Cutting Diameter (DC) 23 mm Cutting Diameter Maximum (DCX) 23 mm Cutting Diameter Minimum (DCN) 23 mm Face Effective Cutting Edge Count (ZEFF) 1 Flute Count (NOF) 1 Functional Length (LF) 1650 mm Master Insert Identification (MIID) TOHT11… Point Length (PL) 3.4 mm Overall Length (OAL) 1653.4 mm Shank Length (LS) 60 mm Usable Length (LU) 1559.4 mm Usable Length Diameter Ratio (ULDR) 67.8 Paketvikt 0 Produktslag Djuphålsborr/Gun Drill Diameter ⌀ 23 mm Diameter ⌀ 23 mm Totallängd 1653.4 mm Antal skär z 1
