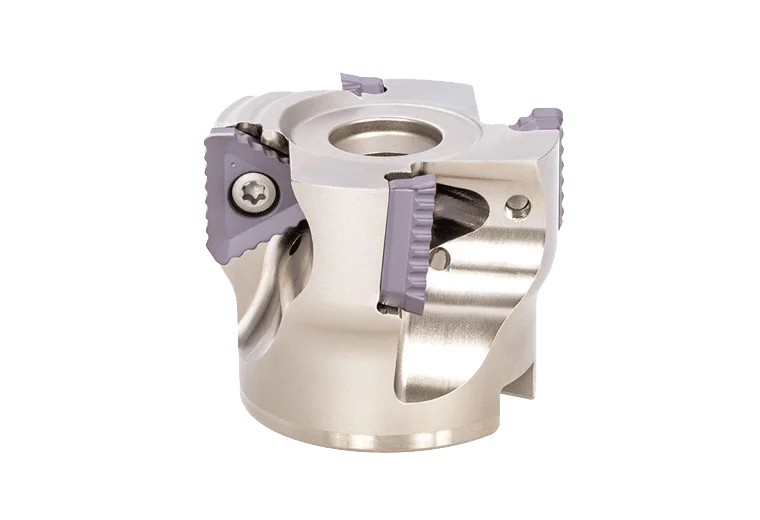

TPTC16M080B27.0R06 Erbjudandepris

Beskrivning

size of interface CUTTER – SHANK TYPE Enhet M Applikation M Måttenhet Metrisk Tillämpliga material Metric MSDS 7995 Material HM (7995) Klass Steel Connection Diameter Machine Side (DCONMS) 27 mm Connection Diameter Workpiece Side (DCONWS) 27 mm Cutting Diameter (DC) 80 mm Cutting Diameter (DC/DCX) 80 mm Cutting Diameter Maximum (DCX) 80 mm Cutting Diameter Minimum (DCN) 80 mm Diameter Bolt Circle (DBC) 16 mm Functional Length (LF) 50 mm Functional Width (WF) 50 mm Master Insert Identification (MIID) TCMT160620PDER-NMJ Maximum Feed per Tooth (fz(max)) TCMT160620PDER-NMJ Overall Length (OAL) 50 mm Overall Width (OAW) 50 mm Paketvikt 1.0060 Produktslag Skär – skafttyp Diameter ⌀ 80 mm Diameter ⌀ 80 mm Antal skär z 6
