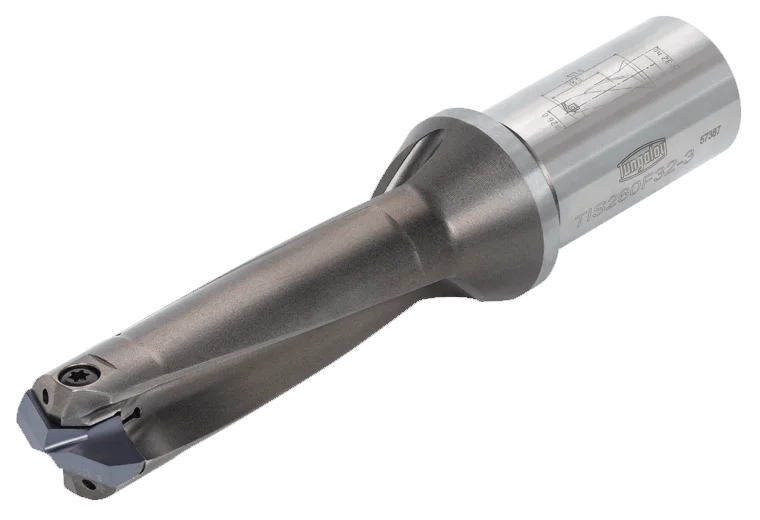

TISU1024F1250-3 Kampanjpris

Beskrivning

Enhet I Applikation | Generell borrning | Måttenhet Tum MSDS 7995 Material Stål Connection Diameter Machine Side (DCONMS) 1-1/4″ Cutting Diameter Maximum (DCX) 1.059″ Cutting Diameter Minimum (DCN) 1.024″ Face Effective Cutting Edge Count (ZEFF) 2 Flute Count (NOF) 2 Flange Diameter (DF) 1.772″ Insert Seat Size Code (SSC) 26 Master Insert Identification (MIID) SMP260 Point Length (PL) 0.186″ Overall Length (OAL) 7.677″ Shank Length (LS) 2.362″ Usable Length (LU) 3.23″ Usable Length Diameter Ratio (ULDR) 3 Paketvikt 2.1319 Produktslag Borr – L/D = 3 Invändig kylning ja Längd xD 3xD Antal skär z 2
