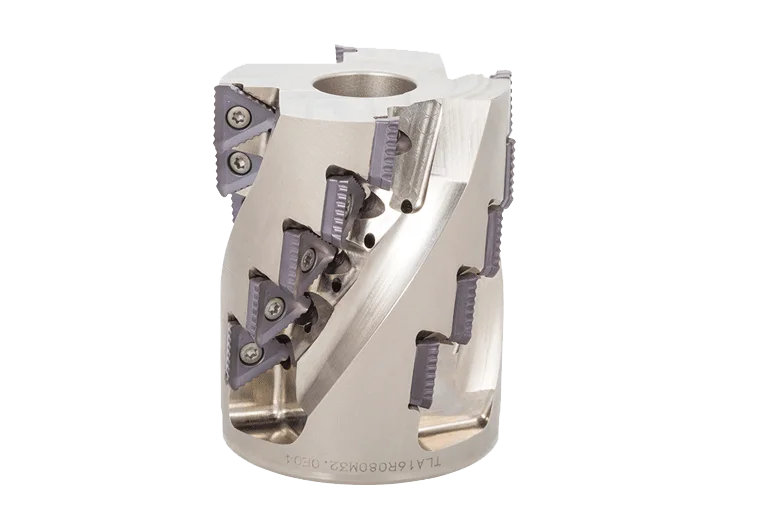

LPTC16M080B32.0L076R04 Beställ idag

Beskrivning

size of interface 90 Extended flute shell mill Enhet M Applikation M Måttenhet Metrisk Tillämpliga material Metric MSDS 7995 Material HM (7995) Klass Steel Connection Diameter Machine Side (DCONMS) 32 mm Connection Diameter Workpiece Side (DCONWS) 32 mm Cutting Diameter (DC) 80 mm Cutting Diameter (DC/DCX) 80 mm Diameter Bolt Circle (DBC) 76 mm Master Insert Identification (MIID) TC*T16… Maximum Feed per Tooth (fz(max)) TC*T16… Overall Length (OAL) 100 mm Overall Width (OAW) 100 mm Peripheral Effective Cutting Edge Count (ZEFP) 4 Protruding Length (LPR) 4 Paketvikt 2.5400 Produktslag 90° förlängd flöjtskalfräs Diameter ⌀ 80 mm Diameter ⌀ 80 mm
