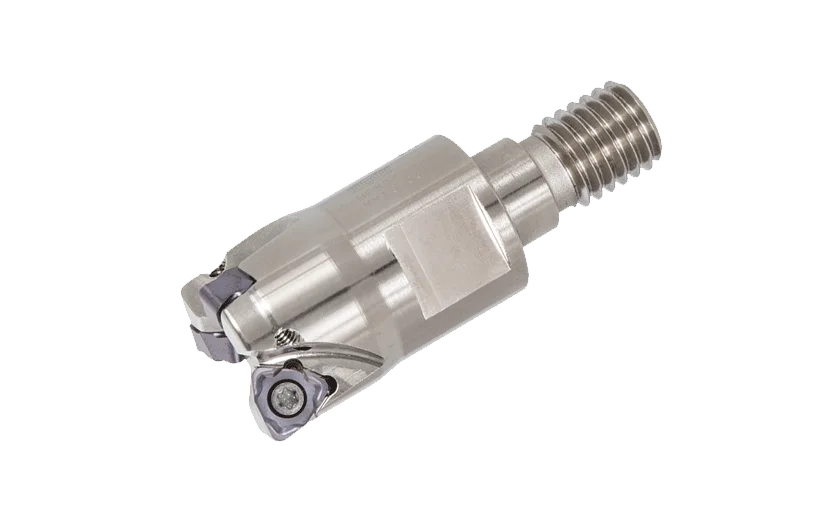

I lager HFWX04M016M08R02

Beskrivning

Enhet M Applikation M Måttenhet Metrisk Tillämpliga material Metric MSDS 7995 Material HM (7995) Klass Steel Connection Diameter Machine Side (DCONMS) 13 mm Connection Diameter Workpiece Side (DCONWS) 13 mm Connection Retention Knob Thread Size (CRKS) M8 Cutting Diameter (DC) 16 mm Cutting Diameter (DC/DCX) 16 mm Cutting Diameter Maximum (DCX) 16 mm Cutting Diameter Minimum (DCN) 16 mm Diameter Bolt Circle (DBC) 0.5 mm Functional Length (LF) 25 mm Functional Width (WF) 25 mm Master Insert Identification (MIID) WXHU040305R-MJ Maximum Feed per Tooth (fz(max)) WXHU040305R-MJ Overall Length (OAL) 42 mm Overall Width (OAW) 42 mm Shank Height (H) 10 mm Shank Length (LS) 10 mm Tool Cutting Edge Angle (KAPR) 94 Degrees Torque (TQ) 94 Degrees Paketvikt 0.0660 Invändig kylning ja Diameter ⌀ 16 mm Diameter ⌀ 16 mm
