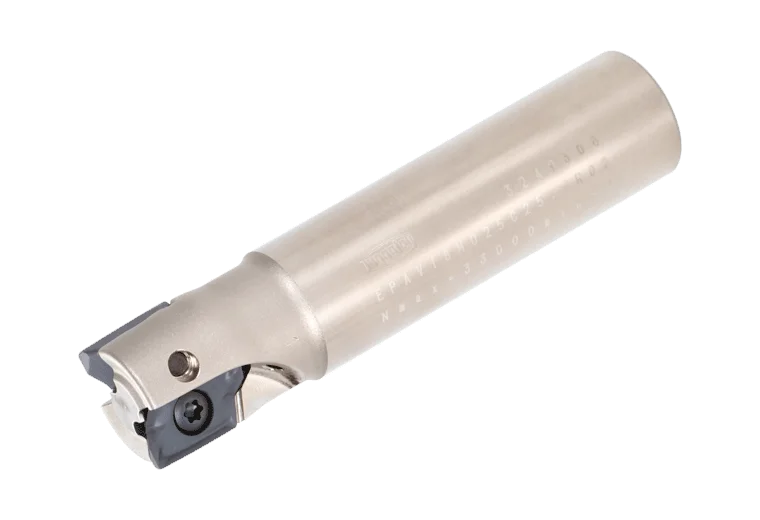

Fynd EPAV18M063C32.0R06

Beskrivning

Enhet M Applikation | Shoulder Milling | Måttenhet Metric Material Stål Connection Diameter Machine Side (DCONMS) 32 mm Cutting Diameter (DC) 63 mm Cutting Diameter (DC/DCX) 63 mm Functional Length (LF) 125 mm Overall Length (OAL) 125 mm Shank Type Round Produktslag Hörnfräskropp Connection Diameter Machine Side (DCONMS) 32 mm Cutting Diameter (DC) 63 mm Cutting Diameter Maximum (DCX) 63 mm Cutting Item Count (CICT) 6 Depth of Cut Maximum (APMX) 16,5 mm Functional Length (LF) 125 mm Head Length (LH) 45 mm Master Insert Identification (MIID) AVMT180708PDER-MM Overall Length (OAL) 125 mm Tool Cutting Edge Angle (KAPR) 90 Degrees Type of product Indexable End Mills STEP 7753192 Diameter ⌀ 63 mm Antal skär z 6 Namn EPAV18M063C32.0R06 Utförande Hörnfräskropp med skaft Måttenhet Metrisk
