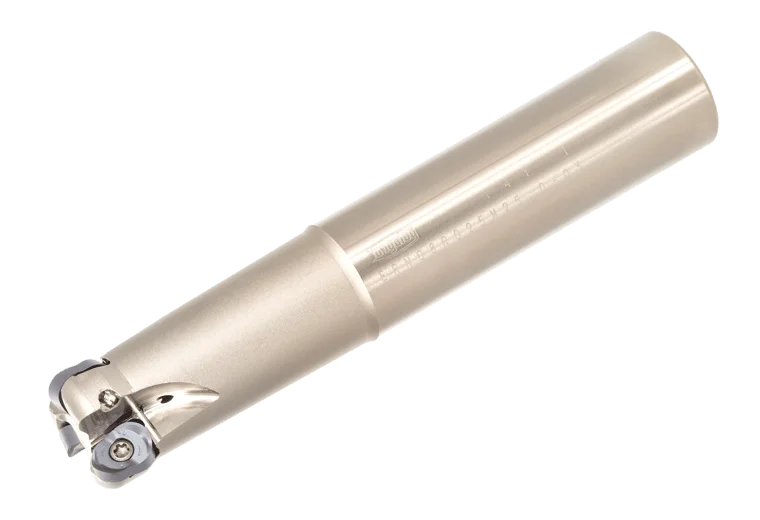

EXLN04U1.25C1.25R05L Fynd

Beskrivning

size of interface CUTTER – SHANK TYPE Enhet I Applikation I Måttenhet Tum Tillämpliga material Inch MSDS 7995 Material HM (7995) Klass Steel Connection Diameter Machine Side (DCONMS) 1-1/4″ Connection Diameter Workpiece Side (DCONWS) 1-1/4″ Cutting Diameter (DC) 1-1/4″ Cutting Diameter (DC/DCX) 1-1/4″ Cutting Diameter Maximum (DCX) 1-1/4″ Cutting Diameter Minimum (DCN) 1-1/4″ Diameter Bolt Circle (DBC) 0.157″ Functional Length (LF) 8″ Functional Width (WF) 8″ Head Length (LH) 5″ Hub Thickness (THUB) 5″ Master Insert Identification (MIID) LNMX0405R4-MJ Maximum Feed per Tooth (fz(max)) LNMX0405R4-MJ Overall Length (OAL) 8″ Overall Width (OAW) 8″ Shank Length (LS) 3″ Shank Size (SS) 3″ Shank Type Round Shank Width (B) Round Paketvikt 0.0000 Produktslag Skär – skafttyp
