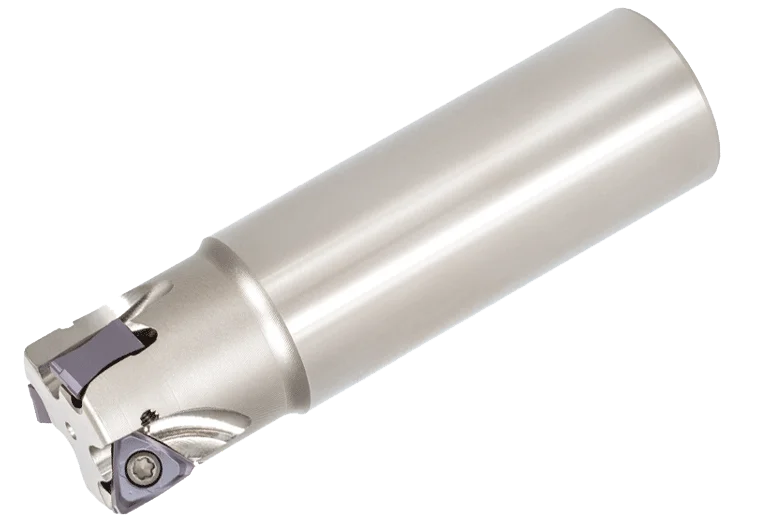

Endast denna vecka EPTN12U1.25C1.25R03N

Beskrivning

size of interface CUTTER – SHANK TYPE Enhet I Applikation I Måttenhet Tum Tillämpliga material Inch MSDS 7995 Material HM (7995) Klass Steel Connection Diameter Machine Side (DCONMS) 1-1/4″ Connection Diameter Workpiece Side (DCONWS) 1-1/4″ Cutting Diameter (DC) 1-1/4″ Cutting Diameter (DC/DCX) 1-1/4″ Cutting Diameter Maximum (DCX) 1-1/4″ Cutting Diameter Minimum (DCN) 1-1/4″ Diameter Bolt Circle (DBC) 0.433″ Functional Length (LF) 4-1/2″ Functional Width (WF) 4-1/2″ Head Length (LH) 1-1/2″ Hub Thickness (THUB) 1-1/2″ Master Insert Identification (MIID) TNMU120708PER-MJ Maximum Feed per Tooth (fz(max)) TNMU120708PER-MJ Overall Length (OAL) 4-1/2″ Overall Width (OAW) 4-1/2″ Shank Length (LS) 3″ Shank Size (SS) 3″ Tool Cutting Edge Angle (KAPR) 90 Degrees Torque (TQ) 90 Degrees Paketvikt 1.6006 Produktslag Skär – skafttyp
