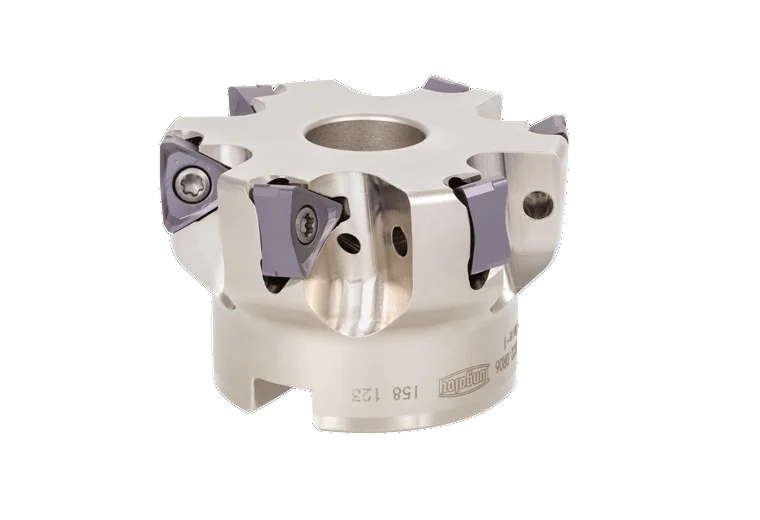

Beställ nu TPTN12M050B22.0R05

Beskrivning

size of interface CUTTER – BORE TYPE Enhet M Applikation M Måttenhet Metrisk Tillämpliga material Metric MSDS 7995 Material HM (7995) Klass Steel Connection Diameter Machine Side (DCONMS) 22 mm Connection Diameter Workpiece Side (DCONWS) 22 mm Cutting Diameter (DC) 50 mm Cutting Diameter (DC/DCX) 50 mm Cutting Diameter Maximum (DCX) 50 mm Cutting Diameter Minimum (DCN) 50 mm Diameter Bolt Circle (DBC) 11 mm Functional Length (LF) 40 mm Functional Width (WF) 40 mm Master Insert Identification (MIID) TNMU120708PER-MJ Maximum Feed per Tooth (fz(max)) TNMU120708PER-MJ Overall Length (OAL) 40 mm Overall Width (OAW) 40 mm Paketvikt 0.4850 Produktslag Cutter – Bore type Diameter ⌀ 50 mm Diameter ⌀ 50 mm Antal skär z 5
